Jointers
HAMMER JOINTER/PLANER

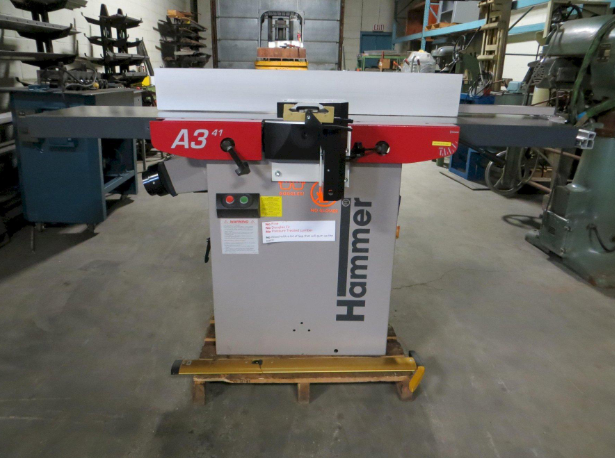

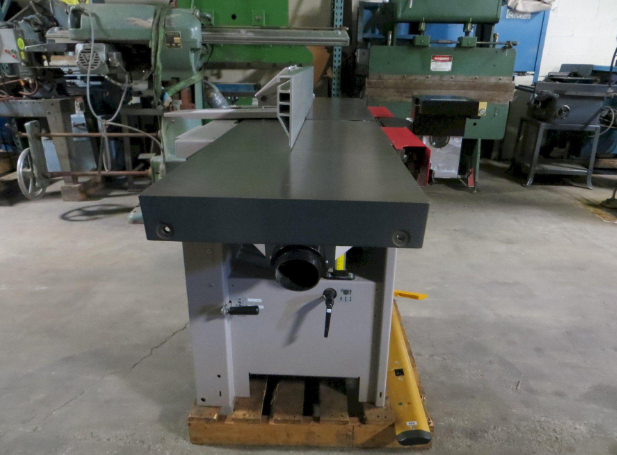

16" Hammer Jointer / Planer Model A3 41/11
Serial # 52.12.070.13
Solid cast iron jointer and planer tables
Silent-Power Cutterblock
Dual lifting jointer tables
Quick changeover
Extraction Connection Diameter [mm] 120
Frequency [Hz] 60
Max. Depth of Cut [mm] 4
Motor Power [kW] 3
Planing Width [inch] 16"
Power (HP) 4
Surface Planer Table Length [inch] 70⅞
Thicknessing Table Height [inch] ⅛" - 8⅞"
Thicknessing Table Length [mm] 600
Voltage [V] 1x 230
Weight: 880 lbs / Height: 33 1/2"
SPECIFICATIONS:
Solid cast iron tables that assure accuracy for jointing and planning.
Machine handling elements in top ergonomic design, like with the jointer table adjusting system, facilitate every-day use.
Knife changes take only seconds.
Flawless - sensational constant, smooth planing finish with the Silent-Power® Spirial Knife Cutterblock
The jointer fence guides your work-piece accurately and tilts from 90-45°

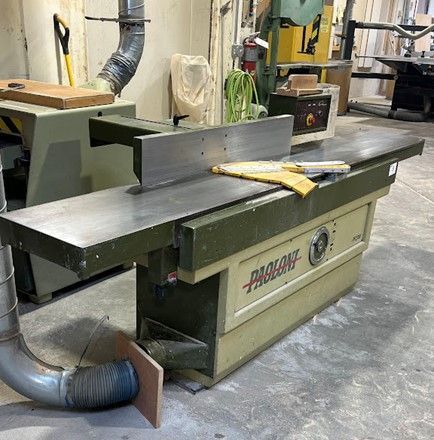

USED PAOLINI 16” TERSA HEAD JOINTER
MODEL: PF2740 LONG TABLE 102”,
5HP, 3PH, CAST IRON ADJUSTABLE FENCE: 7” X 43-1/2”,
4 KNIFE, 61-1/2” X 16” INFEED TABLE, 43-1/2” X 15-1/2” OUTFEED TABLE, GUARD, DUST CHUTE
NJ 07307
