SHAPERS
SCMI SHAPER MODEL T110
6.6HP, 3PH, 220 VOLT, 1-1/4” INTERCHANGEABLE SPINDLE, REVERSE SWITCH, SPINDLE SPEEDS: 3000, 4500, 6000, 8000, 10,000, 39” X 36” SLOTTED TABLE, STANDARD FENCE, TABLE PRE-DRILLED FOR POWERFEED

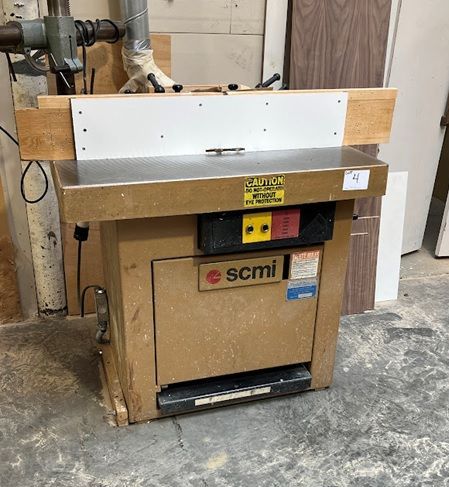

SCMI Shaper
Model T130N Vertical Shaper
Specifications:
Cast Iron Table Size: 47″ x 28-1/2″
Spindle Size: 1-1/4″
Spindle Speeds: 3000/4500/6000/8000/10000 RPM
Max Capacity Under Nut: 6″
Max Insert Opening: 13-1/2″
Spindle Motor: 9 HP
Powermatic Heavy Duty Shaper
Model 26
Serial # 9262382
Condition: Used
3/4" Spindle
5 HP, 3 Phase, 220 Volt
Table: 28" Wide x 38" Depth

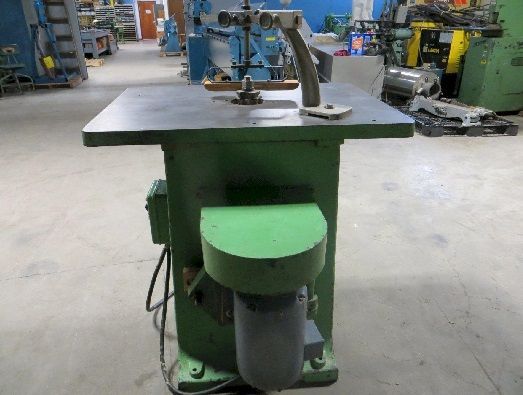

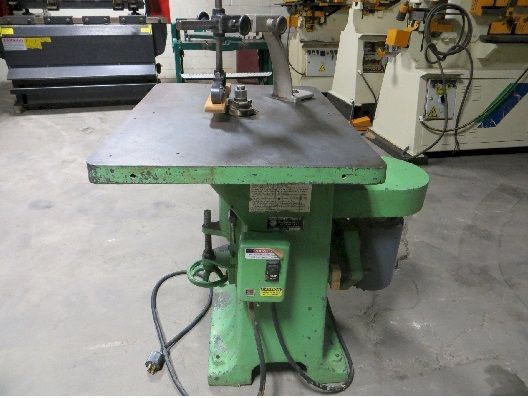

Northfield Production Shaper
Specifications:
Diameter of Spindle (standard machine) 1"
Vertical Adjustment of Spindle 4-1/2"
Length of Spindle at Collar 5"
Size of Table 36" x 26"
Height of Table Top 36"
Spindle Speed 8,000 RPM
Spindle Rotation Counterclockwise
Size of Dust Spout 4" - 4" dust spout requires approx. 400 CFM air flow for dust collection
Horsepower: 5 HP
Size of Throat Hole 4-1/2"
Floor Space 36 width x 36 deep
Approx. Shipping Weight 900 lbs.
Voltage: 230 volts 3 ph 60 hz
